Thermal films and high-performance interfaces

Four materials that share a common idea: orient the graphene so heat travels the direction you need it to, then hold contact while it does.

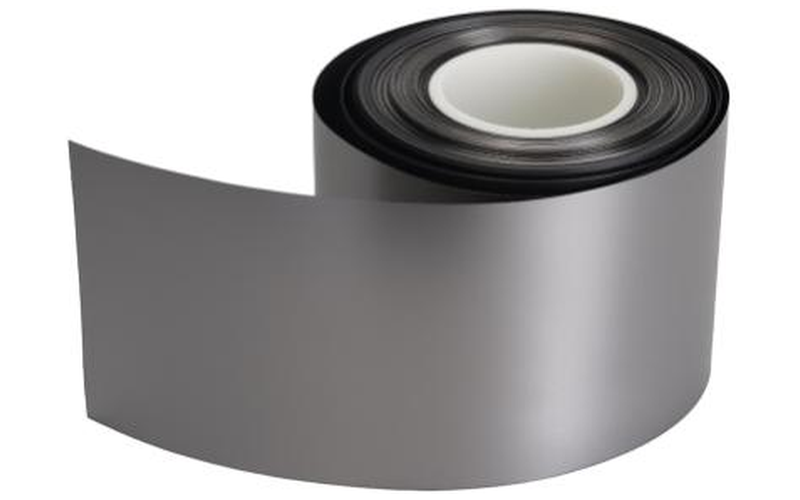

Graphene in-plane thermal film

In-plane thermal film

Highly oriented film for lateral heat spreading. Its advantage is what happens as it gets thicker: conventional graphite sheet loses conductivity sharply with thickness, while our film holds well above 1,400 W/m·K at 150 µm. Since spreading capacity is conductivity multiplied by thickness, that is where the real difference shows up. Flexible, with an uninterrupted sp² conjugated network that survives repeated bending.

  • Above 1,400 W/m·K in-plane at 150 µm
  • 25–150 µm standard range
  • −20 to +120 °C
  • Laminations, adhesives and die-cut parts to print

Request the datasheet

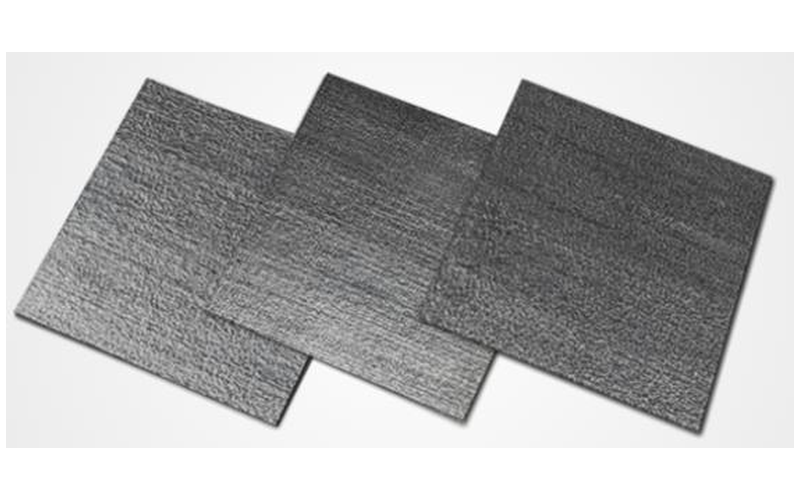

Graphene through-plane thermal film

Through-plane thermal film

Engineered to break the Z-axis bottleneck. Specified in place of liquid metal in liquid-cooled AI servers, without the handling, corrosion and short-circuit exposure liquid metal carries. One material family covers thin die-level interfaces and thick tolerance-absorbing gaps — a span no competing sheet product offers.

  • 70–130 W/m·K through-plane
  • 20–2,000 µm thickness range
  • −40 to +150 °C
  • Density below 0.95 g/cm³

Request the datasheet

Graphene foam structure

Vertically aligned graphene and elastic foam TIM

Two constructions for the hardest interfaces. Vertically aligned graphene orients the sheets perpendicular to the plane, giving heat a straight line out of the package rather than a tortuous path through randomly oriented filler. The elastic graphene foam is genuinely compressible and recovers with the joint — a patent-protected construction that holds conformal contact through thermal and mechanical cycling instead of pumping out.

  • 30–500 W/m·K through-plane, vertically aligned
  • Elastic and conformal under load
  • Constructions matched to your package
  • Patent-protected foam

Request the datasheet

Send us the hot spot.
We will send back material.

Tell us the power, the envelope, the mounting pressure and what you run today. We cut evaluation parts to your geometry and give your team the data to bench them against the incumbent.
